Mini Industrial SFP to 2xGigabit PoE++ Media Converter 60W -40~75°C
Overview
The LNK-IMC1200GP60-SFP is a rugged industrial media converter with 1 SFP port
(100/1000Base-X auto-detection) and 2 x 10/100/1000Base-T Ethernet ports delivering up
to 60W PoE++ per port. Designed for harsh environments, it supports full/half-duplex, jumbo
frames, and Energy Efficient Ethernet (IEEE 802.3az). Its DIN-rail/wall-mountable aluminum
housing ensures reliable operation from -40°C to 75°C, allowing flexible deployment with
single-mode or multi-mode fiber SFP modules. Ideal for powering high-demand industrial
devices such as cameras, APs, and terminals.
Features
1 x SFP port (100/1000Base-X, auto-detection) to 2 x 10/100/1000BASE-T
Supports IEEE802.3af (15.4W), IEEE802.3at (30W), and up to 60W PoE++
Full/half-duplex with auto-negotiation and auto MDI/MDI-X
Jumbo frame support up to 9K Bytes
Energy Efficient Ethernet (IEEE 802.3az)
Hardened aluminum housing for industrial-grade durability
Wide operating temperature: -40°C to 75°C
DIN-rail or wall-mount installation
Technical Indexes
| Ethernet |
| Standards: | IEEE802.3 10Base-T |
| IEEE802.3u 100Base-TX/FX |
| IEEE802.3ab 1000Base-T |
| IEEE802.3z 1000Base-X |
| IEEE 802.3az Energy Efficient Ethernet (EEE) |
| IEEE802.3af Power over Ethernet |
| IEEE802.3at Power over Ethernet |
| Processing Type: | Store-and-Forward |
| Forward Filter Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) |
| 1,488,000pps (1000Mbps) |
| Packet Buffer Memory: | 1 Mbit |
| Max Packet Length: | 9K Bytes |
| Address Table Size | 2K MAC Addresses |
| Interface |
| Connector: | 2 x RJ45 |
| Optical Port: | 1 x SFP 1000Base-X or 100Base-FX (auto detection) |
| Electrical and Mechanical |
| Input Power: | 48~57VDC, 4-pin terminal block |
| Power Consumption: | 125W Max. |
| LED Indicators: |
| PWR: | Power Status |
| PoE: | PD Plug Status |
| RJ45: | LINK/Activity |
| SFP: | LINK |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Environmental |
| Operating Temperature: | -40°C to 75°C (-40°F to 167°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Regulatory Approvals |
| ISO9001, CE, FCC, RoHS |
| EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010 |
| EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF) |
Ordering Information
| Model | Description |
| LNK-IMC1200GP60-SFP | Hardened 2-Port 10/100/1000BASE-TX to 100/1000BASE-X SFP Media Converter with 60W PoE++ |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. |
| Mounting Options | ► Default DIN-Rail Bracket installed, Wall Mount Bracket is included. |
| Power Options | ► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |

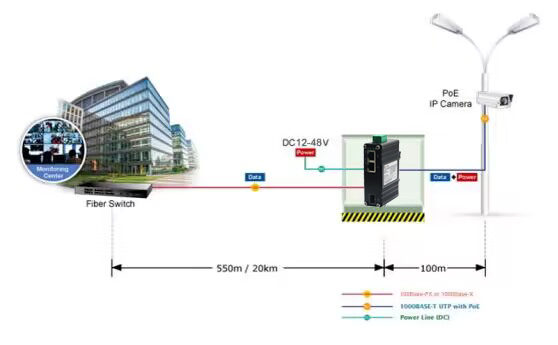

Application
