Mini HDMI Over CAT5/CAT6 Extender with IR - 165ft (50m)
Mini HDMI Extender Overview

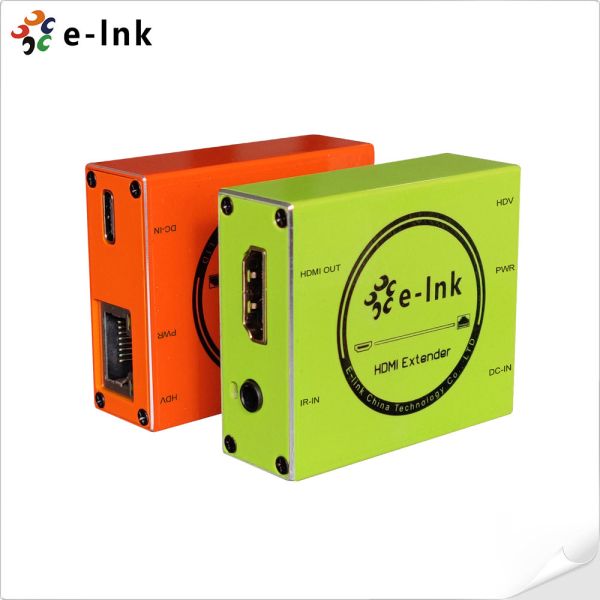

The LNK-MHDE-P50 Mini HDMI Extender is a compact, efficient solution for transmitting
Full HD 1080p@60Hz HDMI signals up to 50 meters via CAT5e/6 UTP cables. This transmitter
and receiver pair provides stable, high-quality signal transmission and enhanced compatibility
thanks to its built-in EDID. Ideal for professional AV applications, such as conference systems,
video production, educational setups, and digital signage, the extender provides cost-effective,
reliable, and easy-to-install point-to-point connectivity.
Mini HDMI Extender Features
►Premium Aluminum Shell: Ultra-compact and slim design, stylish and durable with strong anti-interference performance.
►Uncompressed Transmission with Zero Latency: Ensures real-time, high-quality video and audio.
►Auto Cable Length Adjustment: Automatically optimizes signal transmission for stable performance.
►Full HD Support: Supports resolutions up to 1080P@60Hz.
►Extended HDMI Range: Transmit HDMI signals over a single UTP CAT6/6a/7 cable up to 50 meters.
►EDID Pass-Through: Maintains optimal display compatibility and performance.
►IR Transmission Support: Enables remote control signal pass-through.
►Flexible Power Input: USB-C power supply with 5~12V DC support.
Mini HDMI Extender Technical Indexes
| Parameter | Description |
| Video | Standards | HDMI 1.4; HDCP 1.3 |
| Maximum pixel clock | 165MHz |
| Maximum data rate | 6.75Gbps |
| Resolution | Max: 1920X1080@60Hz |
| Connector | HDMI-A |
| Impedance | 100Ω |
| IR | Interface | 3.5mm earphone seat |
| Signal direction | Unidirectional |
| Signal type | Digital |
| IR frequency | 38kHz |
| Ethernet | Interface | RJ45(568B) |
| Transmission distance | 720P, UTP CAT6---80m |
| Transmission distance | 1080P, UTP CAT6---50m |
| Other | Power supply | DC 5~12V |
| Power dissipation | MAX 3W |
| Temperature | Operating: -5℃ ~ +50℃ |
| Humidity | Operating: 5% ~ 90% |
| Dimension | 51x45x18mm |
| Housing Material | Aluminum |
| The warranty | 1 year warranty |
Mini HDMI Extender Ordering Information
| Model | Description of product |
| LNK-MHDE-P50 | HDMI Over CAT5/CAT6 Extender with IR - 165 ft (50m), including 1 Transmitter & 1 Receiver, used by pairs |
HDMI Extender Application
After-Sales and Warranty Policy
It is composed of online customer service and telephone customer service, providing product consultation,
remote technical support, maintenance and acceptance services.
Service Policy: Three-month replacement and three-year warranty.
Replacement: Within three months of purchasing a series of products, after testing the product failure
by technicians and man-made damage caused by non-natural disasters, the purchaser can directly
go to the purchasing point to replace the same type of products.Or a product of comparable performance.
If there is no trouble in product testing, the original sample will be returned.
Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.
[The following circumstances do not fall within the scope of replacement and free maintenance]
1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
