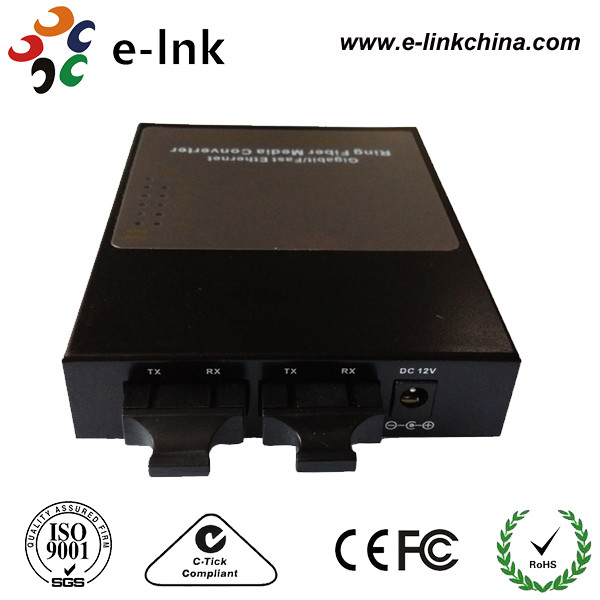

Ring Type Fiber Optic Cable Ethernet Converter 310 /100M TP 2100M FX Dual Fiber Multi Mode SC

Name: Ring Type Fiber Optic Cable Ethernet Converter 310 100M TP 2100M FX Dual Fiber Multi Mode SC
Brand: E-link
Price: 1 USD

Quality Ring Type Fiber Optic Cable Ethernet Converter 3*10 /100M TP 2*100M FX Dual Fiber Multi Mode SC for sale

Brand Name : E-link

Model Number : LNK-R2300

Certification : RoHS,CE,FCC

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram,Paypal

Supply Ability : Negotiation

Delivery Time : 3-5 working days

Packaging Details : Standard Export Package

Wavelength : 850nm/1310nm/1550nm

Dual-fiber single-mode : 10/20/40/60/80/100/120Km

Power : DC 12V

Power consumption : 5W

Operating temperature : -10~55℃

Fiber Port : 2 SC ports

Ethernet Port : 3 RJ45 port

Contact Now

Product: 1000M Ring Type Fiber Media Converter

Model: LNK-R2300G Series

Overview

E-link LNK-R2300G series Ring type Media Converter is designed to meet requirements of multi fiber access network. It provides 2 1000BASE-SX/LX fiber ports and 3 10/100/1000BASE-TX RJ45 ports, and one Console port, which provide not only point to point network connection, but also point to multi-point chain network. It support WEB management and RSR (Rapid Super Ring) and has extend the transmission distance of a network from 100m over copper wires to 120Km (single-mode full duplex) and is applied to highway network system, mine communication system and other chain multi-point networks.

Key Features

Provide two 10/100M/1000M fiber ports, three 10/100/1000M RJ45 ports
Support Gigabit fiber Hiper-Ring network
Support 128 ring network nodes
Support redundant ring network protection (switching time<50ms, RSTP/STP
Support WEB management, RSR (Rapid Super Ring)
Working temperature is -10℃～70℃
Supporting multiple types of fiber ports, such as dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode, to satisfy the extended requirements of users

Technical Indexes

Parameters	Specifications
Standard	IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.1d Spanning Tree
Wavelength	850nm/1310nm/1550nm
Transmission distance	Dual-fiber multi-mode: 220m(optical fiber size 62.5/125μm)/550m(optical fiber size 50/125μm) Dual-fiber single-mode: 10/20/40/60/80/100/120Km Single-fiber single-mode: 10/20/40/60/80Km Category-5 twisted pairs : 100m
Port	3 RJ45 port: Connected to STP/UTP category-5 twisted pairs 2 fiber port: Multi-mode – SC (fiber size: 50,62.5/125μm) Single mode – SC/FC fiber port (fiber size: 9/125μm) Single-fiber single-mode – SC/FC fiber port (fiber size: 9/125μm)
Conversion Mode	Medium conversion
Delay	<10us
Bit error rate	<1/1000000000
MTBF	100,000 hours
LED	POWER(PWR),FX LINK1/2(fiber link/action),TP LINK1000 1/2/3(twisted pair link/action 1000M),TP LINK/ACT1/2/3 (twisted pair packet forwarding link/action)
Power	DC 12V
Power consumption	5W
Operating temperature	-10~55℃
Operating humidity	5%~90%
Storage temperature	-40~70℃
Storage humidity	5%~90% (non-condensing)
Dimensions	26mm(H)96mm(W)120mm(D)/ (height * width * depth) (external power)

Application

Ring Type Fiber Optic Cable Ethernet Converter 3*10 /100M TP 2*100M FX Dual Fiber Multi Mode SC
